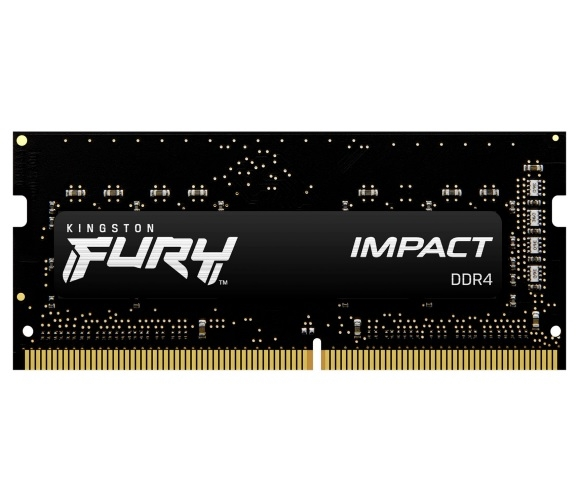

Kingston FURY KF432S20IB/16 is a 2G x 64-bit (16GB) DDR4-3200 CL20 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-3200 at a low latency timing of 20-22-22 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. The JEDEC standard electrical and mechanical specifications are as follows:
FEATURES
• Power Supply: VDD is equal to 1.2V Typical
• VDDQ is equal to 1.2V Typical
• VPP is equal to 2.5V Typical
• VDDSPD is equal to 2.2V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
FACTORY TIMING PARAMETERS
• Default (Plug N Play): DDR4-3200 CL20-22-22 at 1.2V
• XMP Profile Number 1: DDR4-3200 CL20-22-22 at 1.2V
• XMP Profile Number 2: DDR4-2933 CL17-19-19 at 1.2V
