KSM56E46BD8KM-48HM

48GB 2Rx8 6G x 72-Bit

PC5-5600 CL46 288-Pin DIMM

DESCRIPTION

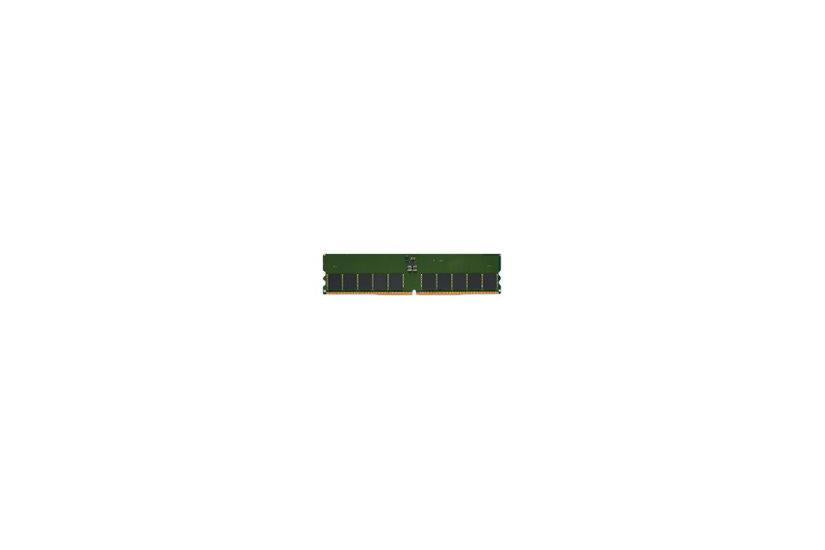

Kingston's KSM56E46BD8KM-48HM is a 6G x 72-bit (48GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 3G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• x72 ECC (x36, 2 independent I/O sub channels)

• 32 internal banks

• Hard/Soft Post Package Repair

• Sideband access with I3C/I2C

• PCB: Height 1.23” (31.25mm)

• RoHS Compliant and Halogen-Free
