KVR64A52BS8-16

16GB 1Rx8 2G x 64-Bit

PC5-6400 CL52 288-Pin CUDIMM

DESCRIPTION

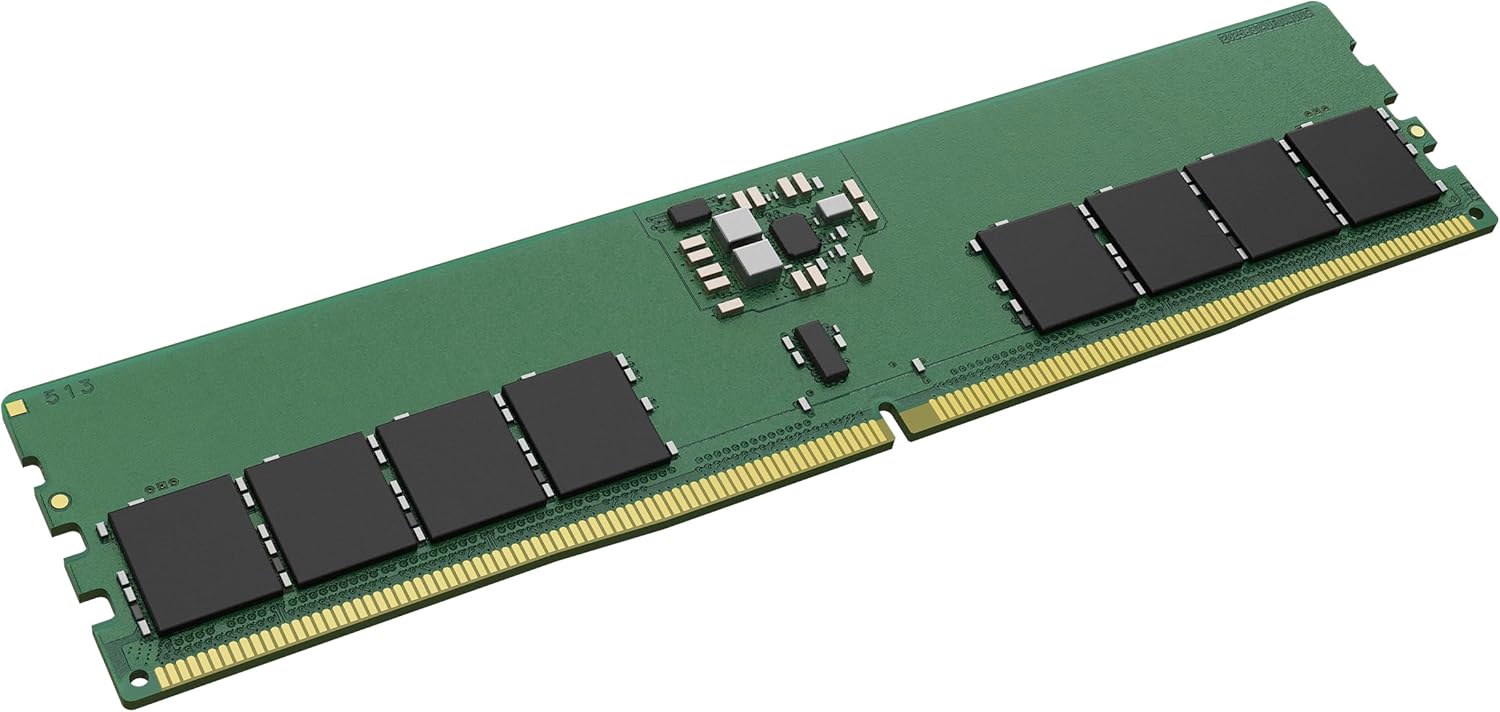

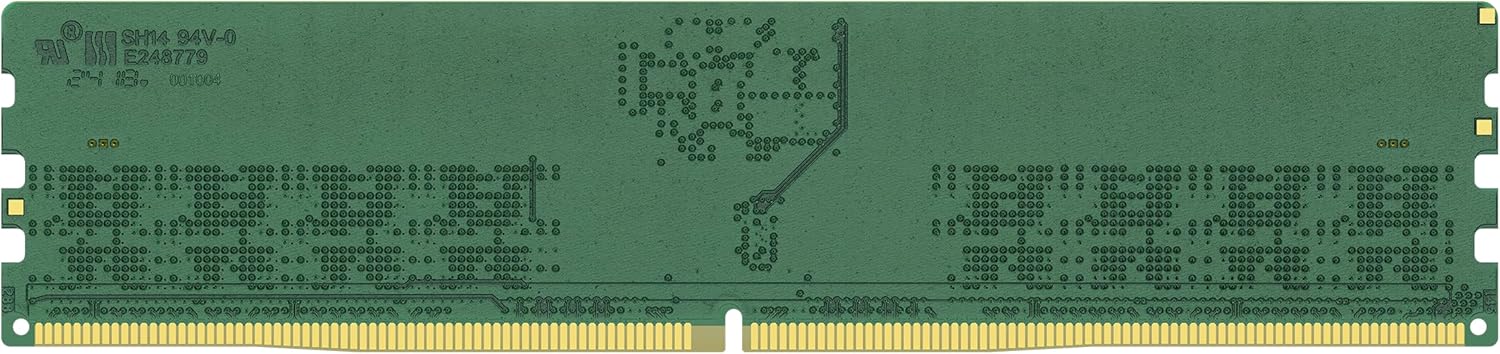

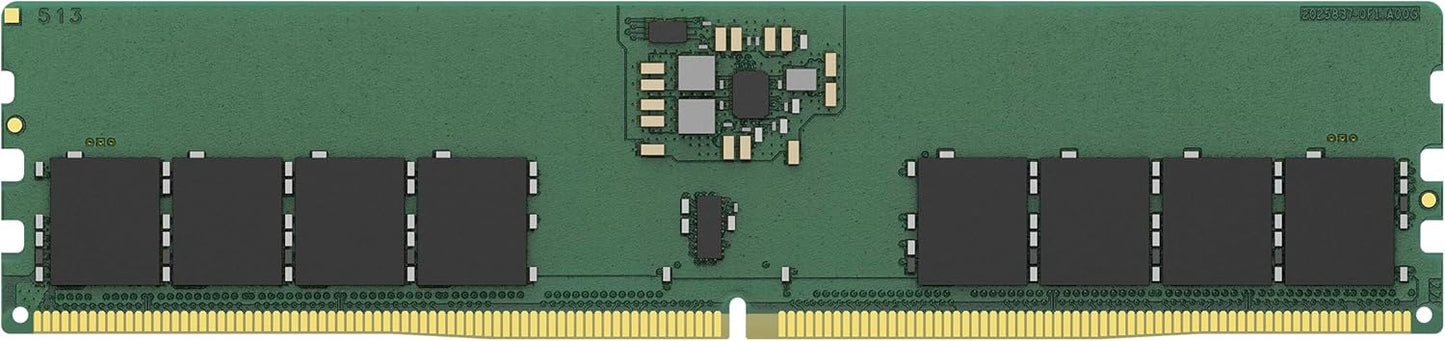

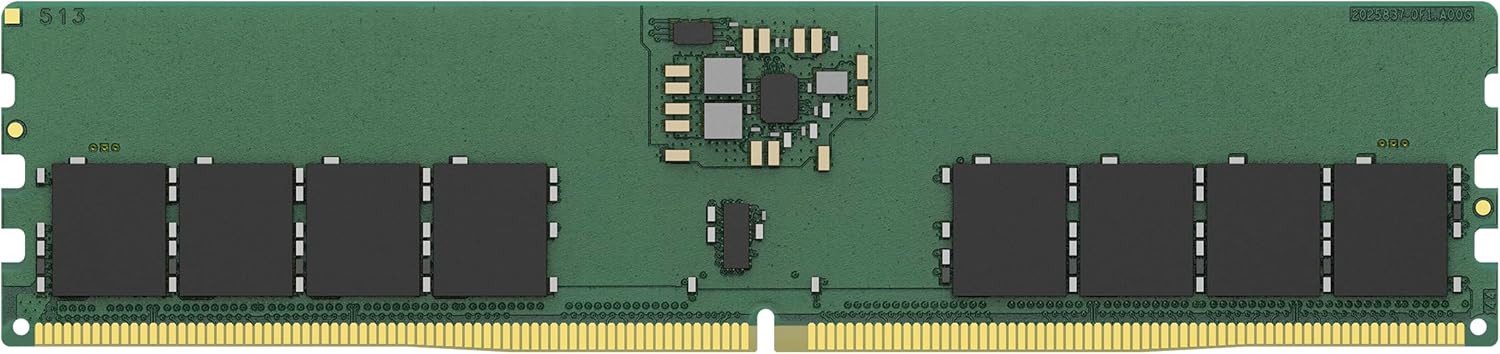

This document describes ValueRAM's KVR64A52BS8-16 is a 2G x 64-bit (16GB) DDR5-6400 CL52 Clocked Unbuffered DIMMs (CUDIMMs), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components and one Clock Driver (CKD). The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• PCB: Height 1.23” (31.25mm)

• RoHS Compliant and Halogen-Free

• With Clock Driver
