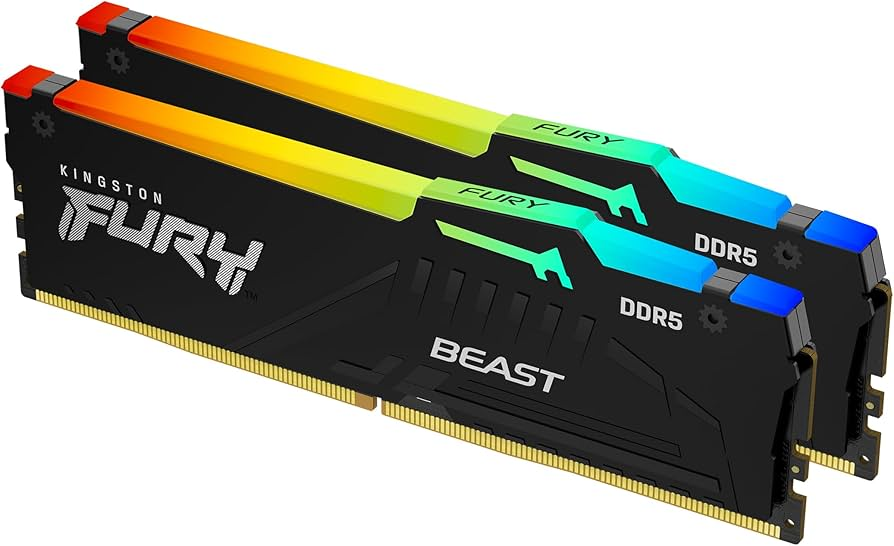

Kingston KF560C36BBE2AK2-32 32G 6000MT s DR5 CL36 DIMM K2 FURY BeastRGB EXPO

KF560C36BBE2AK2-32

32GB (16GB 2G x 64-Bit x 2 pcs.)

DDR5-6000 CL36 288-Pin DIMM Kit

DESCRIPTION

Kingston FURY KF560C36BBE2AK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 36-44-44 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

• EXPO Profile #0: DDR5-6000 CL36-44-44 @1.35V

• EXPO Profile #1: DDR5-5600 CL40-40-40 @1.25V

• XMP Profile #1: DDR5-6000 CL36-44-44 @1.35V

• XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V
