KF556C40BB2-32

32GB 4G x 64-Bit

DDR5-5600 CL40 288-Pin DIMM

DESCRIPTION

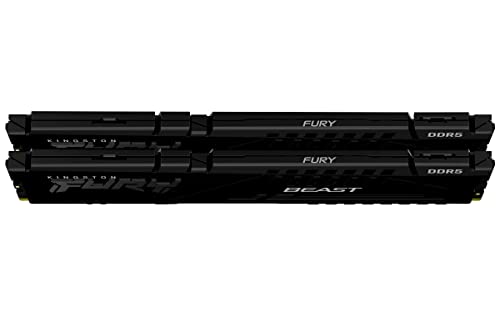

Kingston FURY KF556C40BB2-32 is a 4G x 64-bit (32GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 4G x 8-bit FBGA components per module. The module supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

• EXPO Profile #0: DDR5-5600 CL40-40-40 @1.25V

• EXPO Profile #1: DDR5-5200 CL40-40-40 @1.25V

• XMP Profile #1: DDR5-5600 CL40-40-40 @1.25V


• XMP Profile #2: DDR5-5200 CL40-40-40 @1.25V
